Sealing, Jointing & Gaskets

Filters

Showing 1-24 of 32 products

24/48/All

Sort By
Please add widgets to the WooCommerce Filters widget area in Appearance > Widgets

Camthorne have the industry knowledge and products available to suit all your sealing and jointing needs – we offer a diverse and specialised range of rubber, sponge and non-asbestos materials for all applications. EPDM, neoprene, Viton, nitrile, polyurethane, silicone, butyl, Klinger & Phoenix non-asbestos, cork, and food-quality/FDA sheeting are just a small selection of materials within our scope of supply.

We are a leading UK gasket manufacturer, with materials to seal against all manner of media – whether solid, liquid or gas – under a range of temperature and pressure ratings. We carry tooling for an array of standard flange styles, enabling fast turnaround of parts and, importantly, reduced downtime of your equipment or machinery. Our waterjet cutting capability also means we can offer intricate profile shapes with low lead times – save money on otherwise expensive tooling costs for bespoke, prototype and small-batch orders, whilst maintaining the very highest level of accuracy and repeatability. How to measure gaskets

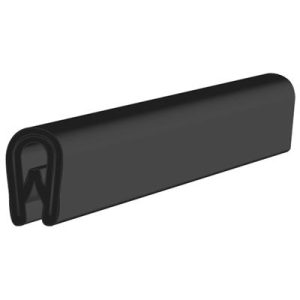

Our product range also encompasses moulded and extruded rubber profiles, including: O-rings, door and boot seals, U-channel, D-seal, draught excluders, glazing strips, bumpers, weather strip, sponge cord, PVC edge trim, and solid nitrile cord.

Camthorne offer an array of gland packing materials to suit the most demanding of rotary, reciprocating and static applications. Our products are designed and constructed to minimize maintenance costs, through the use of advanced packing fibres, reliable braiding methods, and quality lubrication. The dense, square-braided construction is available in a number of materials such as glass fibre, PTFE, PAN fibre, carbon fibre, Kevlar (Aramid) and Grafan. We can offer packing suitable for the food and pharmaceutical industry, through the full pH range, and for temperatures exceeding 1000°C.

  • epdm
    epdm

    E.P.D.M Rubber

    , , , ,
    RUBBER: EPDM COLOUR: Black TEMPERATURE RATED: -40 to 120°C GRADE: Commercial EPDM *3mm WRAS (WRC) approved* HARDNESS: 70 shore A MAX ROLL LENGTH: 10 metre STANDARD WIDTH: 1.4 & 1.5 metre THICKNESS: 1.5mm to 6mm EPDM rubber has excellent resistance to water, steam ozone ageing and many chemicals. Please note EPDM is not suitable for contact with petroleum liquids.
  • ABSponge
    ABSponge

    EPDM Neoprene Adhesive Backed Sponge Sheeting

    , , ,
    Properties: EPDM/Neoprene sponge has excellent resistance to fresh / sea water, oxidation, UV, ozone and weathering, It also has good resistance to acids. Conforms to: ASTM D 1056 98 B2
    Applications: Gaskets, and sealing strips, around household windows and doors as a draft excluder, use around caravan and automotive windows, use as a weather seal saving energy, and money on heating costs.

    POLYMER TYPE COMPRESSION
    DEFLECTION
    @ 50% (KPA)
    DENSITY
    (KN/M_)
    TENSILE
    STRENGTH
    (KN/M_)
    ELONGATION
    AT BREAK (%)
    WATER
    ABSORPTION
    (%)
    TEMPERATURE
    (°C)
    EPDM/CR 112 122 >500 >180 0.8 -40 TO +100

    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • sponge
    sponge

    EPDM Neoprene Plain Sponge Sheeting

    , , ,
    Properties: EPDM/Neoprene sponge has excellent resistance to fresh / sea water, oxidation, UV, ozone and weathering, It also has good resistance to acids. Conforms to: ASTM D 1056 98 B2
    Applications: Gaskets, and sealing strips, around household windows and doors as a draft excluder, use around caravan and automotive windows, use as a weather seal saving energy, and money on heating costs.

    POLYMER TYPE COMPRESSION
    DEFLECTION
    @ 50% (KPA)
    DENSITY
    (KN/M_)
    TENSILE
    STRENGTH
    (KN/M_)
    ELONGATION
    AT BREAK (%)
    WATER
    ABSORPTION
    (%)
    TEMPERATURE
    (°C)
    EPDM/CR 112 122 >500 >180 0.8 -40 TO +100

    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • Flexoid
    Flexoid

    Flexoid Gasket Paper

    , ,
    Properties: Flexoid gasket paper is manufactured from a cellulose based, plasticised gelatine .
    Applications: Gasket paper has excellent oil and fuel resistance making it perfect for use in the automotive industry. Ideal for Carburettor, Fuel Pump, Oil Pump, Water Pump etc.
    Specification: Conforms to a number of vehicle manufacturer specifications.
    Availability:
    Thickness - 0.15mm to 3mm
    Sheet size - 1000mm x 10000mm standard roll  *custom sizes available*

    TYPE COMPRESSION
    %
    DENSITY
    (g/cc)
    TENSILE
    STRENGTH
    (Mn/m2)
    COLOUR MAXIMUM
    TEMPERATURE
    (°C)
    Gasket Paper 25-40% 1.0 13.79 Brown 120

    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • A lug glass cloth
    A lug glass cloth

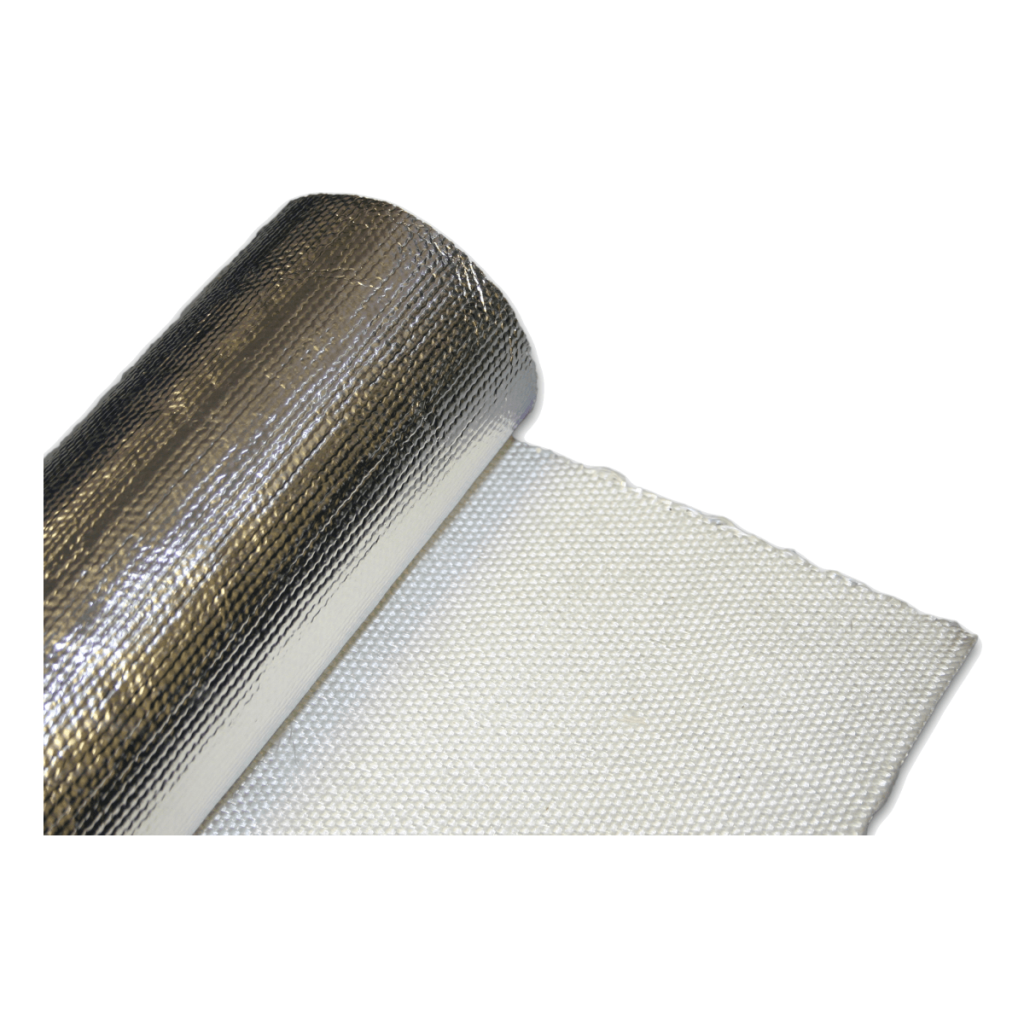

    Foil Backed Glass cloth (Heat shield)

    , ,
    The aluminium foil backed heat shield has a working temperature of 400°c and peaks at 600°c and is ideal for protecting paintwork, electrical systems and engine components, etc from excessive heat from turbos & exhausts. This can also be used on air intake systems to prevent heat absorption. *Please note that this aluminium foil backed sheet is not adhesive backed and that multiple quantities will be supplied in one continuous length (1m x 500mm & 1m x 1m sheets)*. If you require any further information or you have specific requirements please don't hesitate to get in contact with us on 01782 745588. Properties: Aluminium backed E-spec glass cloth heat shield. Applications: The Aluminium back glass cloth is designed to protect paintwork, electrical systems, engine components from excessive heat from turbo chargers and exhausts. Can be used on an air intake systems to prevent heat absorption. Operational temperature: 400°C - 600°C peak Availability: Thickness - 0.8mm, 700g/M2 Standard width - 1 Metre *custom sizes available* Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • Glass tape
    Glass tape

    Glass Fibre Tape

    , ,
    Properties: E-spec glass fibre webbing tape. Constructed from glass fibre yarns, the fibres are inorganic, sterile and incombustible, resistant to oils, solvents and most chemicals.
    Applications: The glass fibre webbing tape is designed to protect paintwork, electrical systems, engine components from excessive heat.
    Operational temperature: 400°C - 600°C peak
    Availability:
    Thickness - 1.5mm to 3mm
    Standard length - 30 Metre

    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • Rubber
    Rubber

    Neoprene Rubber

    , , ,
    Neoprene rubber to cater for a number of sealing/waterproofing/vibration & sound reduction applications in both commercial and domestic applications. This rubber is made from an CR/SBR blended rubber compound at 65° Shore hardness to provide a robust, hard-wearing covering that can withstand vibration, weathering, ozone, oils and animal based fats. Can be fixed to many surfaces using general purpose contact adhesives, with the smooth surface providing a solid area to bind to. Common applications include, but are by no means limited to; commercial and domestic flooring; waterproofing for pet cages, kennels and outdoor runs; load liners for cars & vans; worktop and tool chest coverings; motor and marine gasket making, etc. If you require any further information or you have specific requirements please don't hesitate to get in contact with us on 01782 745588. RUBBER: Neoprene COLOUR: Black TEMPERATURE RATED: -30 to 90°C GRADE: Commercial Neoprene HARDNESS: 60 shore A MAX ROLL LENGTH: 10 metre STANDARD WIDTH: 1.4 metre THICKNESS: 1mm to 25mm
  • Sponge Cord
    Sponge Cord

    Neoprene Sponge Cord

    , , ,
    Closed-cell neoprene rubber sponge/foam cord - can be used in a number of general purpose sealing applications. Non-porous, weather and ozone resistant, and heavily compressible to fit into small gaps such as floorboards and windows. Uses include: caravan, boat, car and motor home seals; weather seal around windows and doors for draught exclusion, and any outdoor application. Hardness is <5 Shore A (~45 Shore 00). Multiple order quantities will be supplied as one length. If you require any further information or you have specific requirements please don't hesitate to get in contact with us on 01782 745588. Properties: Neoprene closed cell sponge cord fully skinned. It is resistant to weathering, ozone, water and oils. Applications: Neoprene sponge cord is a general purpose seal used in various applications. It is highly compressible and easily cut and joined into o-rings. Availability: Diameter - 2mm to 25mm Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • cork
    cork

    Nitrile Bonded Cork

    , ,
    General purpose Nitrile bonded cork gasket material, with heat tolerance to 120°C. High compressibility, flexibility and resilience - used to seal against oils, fuels and grease in numerous automotive and industrial gasket applications. Can also be used for alternative applications such as anti-vibration pads and roller coverings. If you require any further information or you have specific requirements please don't hesitate to get in contact with us on 01782 745588. Properties: Nitrile bonded cork is a highly compressible and resistant to fuel and oils. Applications: Cork is suitable for low to medium bolt pressure applications in the automotive industry. Availability: Thickness - 1mm to 6mm Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • Rubber
    Rubber

    Nitrile Rubber BS2751:BA60

    , , , ,
    Nitrile BA60 rubber to cater for a number of high spec sealing applications in both commercial, domestic and motor vehicle applications. This rubber is made from pure NBR (acrylonitrile butadiene) rubber at 60° Shore hardness, with excellent mechanical and physical characteristics and excellent resistance to Petroleum based fluids, oils, solvents and greases. Can be easily cut using press tools, blades, laser and water-jet CNC. Common applications include, but are by no means limited to; aviation, motor and marine gasket making to seal against petrol, diesel, biodiesel and oils. If you require any further information or you have specific requirements please don't hesitate to get in contact with us on 01782 745588. RUBBER: Nitrile COLOUR: Black TEMPERATURE RATED: -30 to 100°C GRADE: BS2751:BA60 HARDNESS: 60 shore A MAX ROLL LENGTH: 10 metre STANDARD WIDTH: 1.4 metre THICKNESS: 1.5mm to 6mm
  • nitrile cord
    nitrile cord

    Nitrile Rubber Cord

    , , ,
    Properties: Nitrile rubber cord 70A shore hardness . It is resistant to weathering, ozone, water, oils and fuel.
    Applications: Nitrile rubber cord is a general purpose seal used in various applications where exact size moulded o-rings are unavailable. Easily cut to size and vulcanised in to endless rings.
    Availability:
    Diameter - 1mm to 40mm


    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • PGE
    PGE

    Phoenix PG-E

    , , ,
    Properties: PG-E is made from compressed fibres based on aramid and inorganic fibre with a high quality Nitrile binding system.
    Applications: PG-E is a general purpose gasket material with excellent mechanical properties, suitable for a wide range of fluids including oils, water, solvents, gas, low pressure steam and many chemicals.
    Specification: WRAS 1401527
    Availability:
    Thickness - 0.25mm to 3mm
    Sheet size - 1500mm x 1500mm

    TYPE COMPRESSION
    %
    DENSITY
    (g/cc)
    TENSILE
    STRENGTH
    (MPa)
    MAXIMUM
    PRESSURE
    (Bar)
    MAXIMUM
    TEMPERATURE
    (°C)
    PG-E 7 TO 15 1.90 10 40 175

    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • PGG
    PGG

    Phoenix PG-G

    , , ,
    Properties: PG-G is a high quality grade of compressed fibre sheet material based on a combination of expanded graphite and synthetic fibres with a high quality Nitrile binding system.
    Applications: PG-G is a premium performance material with excellent mechanical properties and a high degree of flexibility. the material is designed for use in a wide range of applications including steam, hydrocarbons and general chemicals.
    Specification: BS7531 Grade X
    Availability:
    Thickness - 0.4mm to 3mm
    Sheet size - 1500mm x 1500mm

    TYPE COMPRESSION
    %
    DENSITY
    (g/cc)
    TENSILE
    STRENGTH
    (MPa)
    MAXIMUM
    PRESSURE
    (Bar)
    MAXIMUM
    TEMPERATURE
    (°C)
    PG-G 7 TO 15 1.80 13 60 225

    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • PGT
    PGT

    Phoenix PG-T

    , , ,
    Properties: PG-T is a high quality graphite laminate material in which exfoliated graphite is mechanically bonded to a 316 stainless steel tanged insert.
    Applications: PG-T has excellent mechanical strength, a wide temperature range and outstanding stress retention properties making it ideal for demanding applications. It is capable of sealing a wide range of fluids including steam, hydrocarbons and most chemicals.
    Specification: High Temperature
    Availability:
    Thickness - 1mm to 3mm
    Sheet size - 1500mm x 1500mm

    TYPE COMPRESSION
    %
    DENSITY
    (g/cc)
    TENSILE
    STRENGTH
    (MPa)
    MAXIMUM
    PRESSURE
    (Bar)
    MAXIMUM
    TEMPERATURE
    (°C)
    PG-T 30-37% 1.0 23 85 400

    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • PGTherm
    PGTherm

    Phoenix PG-Therm

    , , ,
    Properties: PG-Therm is a Mica (Phlogopite) based gasket material, a small amount of high quality silicone binder is used to form the sheet.
    Applications: PG-Therm is a high temperature gasket material designed for exhaust systems, heat exchangers and other high temperature applications.
    Specification: High Temperature
    Availability:
    Thickness - 1.5mm to 3mm
    Sheet size - 1500mm x 1500mm

    TYPE COMPRESSION
    %
    DENSITY
    (g/cc)
    TENSILE
    STRENGTH
    (MPa)
    MAXIMUM
    PRESSURE
    (Bar)
    MAXIMUM
    TEMPERATURE
    (°C)
    PG-Therm 12 2.0 23 7 1000

    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • PGX
    PGX

    Phoenix PG-X

    , , ,
    Properties: PG-X is a premium grade of compressed fibre sheet material based on aramid and inorganic fibres with a high quality Nitrile binding system.
    Applications: PG-X is a superior performance material meeting the requirements of BS 7531 Grade X with outstanding mechanical properties. the material is designed for use in a wide range of applications including steam, hydrocarbons and dilute acids and alkalis.
    Specification: BS7531 Grade X
    Availability:
    Thickness - 0.3mm to 3mm
    Sheet size - 1500mm x 1500mm

    TYPE COMPRESSION
    %
    DENSITY
    (g/cc)
    TENSILE
    STRENGTH
    (MPa)
    MAXIMUM
    PRESSURE
    (Bar)
    MAXIMUM
    TEMPERATURE
    (°C)
    PG-X 7 TO 15 1.80 14 60 225

    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • Rubber
    Rubber

    SBR Commercial Quality Rubber

    , ,
    RUBBER: Styrene Butadiene
    COLOUR: Black
    TEMPERATURE RATED: -20 to 70°C
    GRADE: Commercial SBR
    HARDNESS: 70 shore A
    MAX ROLL LENGTH: 10 metre
    STANDARD WIDTH: 1.4 metre
    THICKNESS: 1mm to 50mm

    SBR rubber is ideally suited to general purpose applications such as gaskets, seals against water, vibration and air.
  • Rubber
    Rubber

    SBR Textile Reinforced Rubber (Insertion)

    , , ,
    RUBBER: SBR / NR
    COLOUR: Black
    TEMPERATURE RATED: -20 to 70°C
    GRADE: Insertion (Polyester ply reinforced)
    HARDNESS: 70 shore A
    MAX ROLL LENGTH: 10 metre
    STANDARD WIDTH: 1.4 metres
    THICKNESS: 1mm to 12mm

    Insertion rubber has a polyester ply reinforcement that increases tensile strength and durability, it is suitable for general purpose jobs to seal against air, water and diluted mixtures.
  • silicone
    silicone

    Silcone Rubber

    , , , ,
    RUBBER: Silicone
    COLOUR: White
    TEMPERATURE RATED: -70 to 200°C
    GRADE: Premium
    HARDNESS: 60 shore A
    MAX ROLL LENGTH: 10 metre
    STANDARD WIDTH: 1.2 metres
    THICKNESS: 1mm to 10mm

    Silicone has excellent resistance to sunlight, ozone, gases and extremes of temperature, with good electrical insulation properties and water repellency.
  • para
    para

    Tan Para Shot Blast Rubber

    , , , ,
    RUBBER: Para natural rubber
    COLOUR: Tan
    TEMPERATURE RATED: -25 to 70°C
    GRADE: Shotblast
    HARDNESS: 40 shore A
    MAX ROLL LENGTH: 10 metre
    STANDARD WIDTH: 1.4 metres
    THICKNESS: 1mm to 25mm

    Para natural rubber has a very high abrasion resistance, being classed as a 'Para - Natural' or pure gum rubber.
    Produced from natural latex, makes this rubber perfectly suited to high abrasion applications including chute linings, shotblast cabinet lining and seals, scraper blades.
  • Rubber
    Rubber

    Viton Grade A Rubber

    , , , , ,
    Viton rubber to cater for a number of high specification sealing and jointing in both commercial and domestic applications. This rubber is made from an Viton A Hexafluoropropylene rubber compound at 75° Shore hardness, to provide a robust, high temperature resistant material that can withstand Fuels, acids, oils, weathering and chemicals. Can be easily cut using press tools, blades, laser and water-jet CNC. Common applications include, but are by no means limited to; aviation, motor and marine gasket making to seal against petrol, diesel, biodiesel, aviation fuel, oils, acids and chemicals in excess of 200°C. If you require any further information or you have specific requirements please don't hesitate to get in contact with us on 01782 745588. RUBBER: Viton A COLOUR: Black TEMPERATURE RATED: -30 to 250°C GRADE: Premium A grade HARDNESS: 70 shore A MAX ROLL LENGTH: 10 metre STANDARD WIDTH: 1.2 metre THICKNESS: 1mm to 6mm
  • VF4
    VF4

    Vulcan VF4 Flax Yarn & PTFE

    , ,
    Properties: VF4 is braided from selected, long fibre, heavy duty, flax yarns thoroughly impregnated yarn by yarn with PTFE, and break-in lubricants. Applications: VF4 is especially designed to seal large cross sectional areas, and is ideal as a marine stern gland seal. Ç 8 metre length standard Ç 130 BAR pressure rating Ç -30°C to +120°C operational temperature Ç 10 m/s rotary speed Ç 2-12 pH range
    SIZE CODE (INCH) CROSS SECTION (MM)
    1/8 3
    3/16 5
    1/4 6.5
    5/16 8
    3/8 9.5
    7/16 11
    1/2 12.5
    9/16 14
    5/8 16
    3/4 19
    7/8 22
    1 25
    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • VG1L
    VG1L

    Vulcan VG1L Gaphite & Glass Fibre

    , ,
    Properties: VG1L is interbraided from a continuous filament, textured air blown glass fibres thoroughly impregnated with mineral oil lubricants and graphite. A dressing and corrosion inhibitor is further applied to the yarns to improve wear resistance.
    Applications: General purpose packing for rotary and reciprocating pumps, mixers and valves against steam, water, oils, air, alkalis, mild acids and chemicals

    Ç 8 metre length standard
    Ç 150 BAR pressure rating
    Ç -100°C to +480°C operational temperature
    Ç 10 m/s rotary speed
    Ç 4-11 pH range

    SIZE CODE (INCH) CROSS SECTION (MM)
    1/8 3
    3/16 5
    1/4 6.5
    5/16 8
    3/8 9.5
    7/16 11
    1/2 12.5
    9/16 14
    5/8 16
    3/4 19
    7/8 22
    1 25

    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
  • VG2
    VG2

    Vulcan VG2 PAN Fibre & Carbon Fibre Graphite

    , ,
    Properties: VG2 is constructed using a composite yarn, manufactured from high-quality PAN fibres combined with pure carbon fibres. The in-built lubrication is further enhanced by thorough graphite impregnation.
    Applications: VG2 is an exceptional performance and cost effective, general purpose packing suitable for most plant applications. Designed to replace and out-perform traditional graphited asbestos packings. Suitable for use against oils, water, steam, solvents and general chemicals.

    Ç 8 metre length standard
    Ç 80 BAR pressure rating
    Ç -50°C to +250°C operational temperature
    Ç 10 m/s rotary speed
    Ç 4-12 pH range

    SIZE CODE (INCH) CROSS SECTION (MM)
    1/8 3
    3/16 5
    1/4 6.5
    5/16 8
    3/8 9.5
    7/16 11
    1/2 12.5
    9/16 14
    5/8 16
    3/4 19
    7/8 22
    1 25

    Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days.
