Description

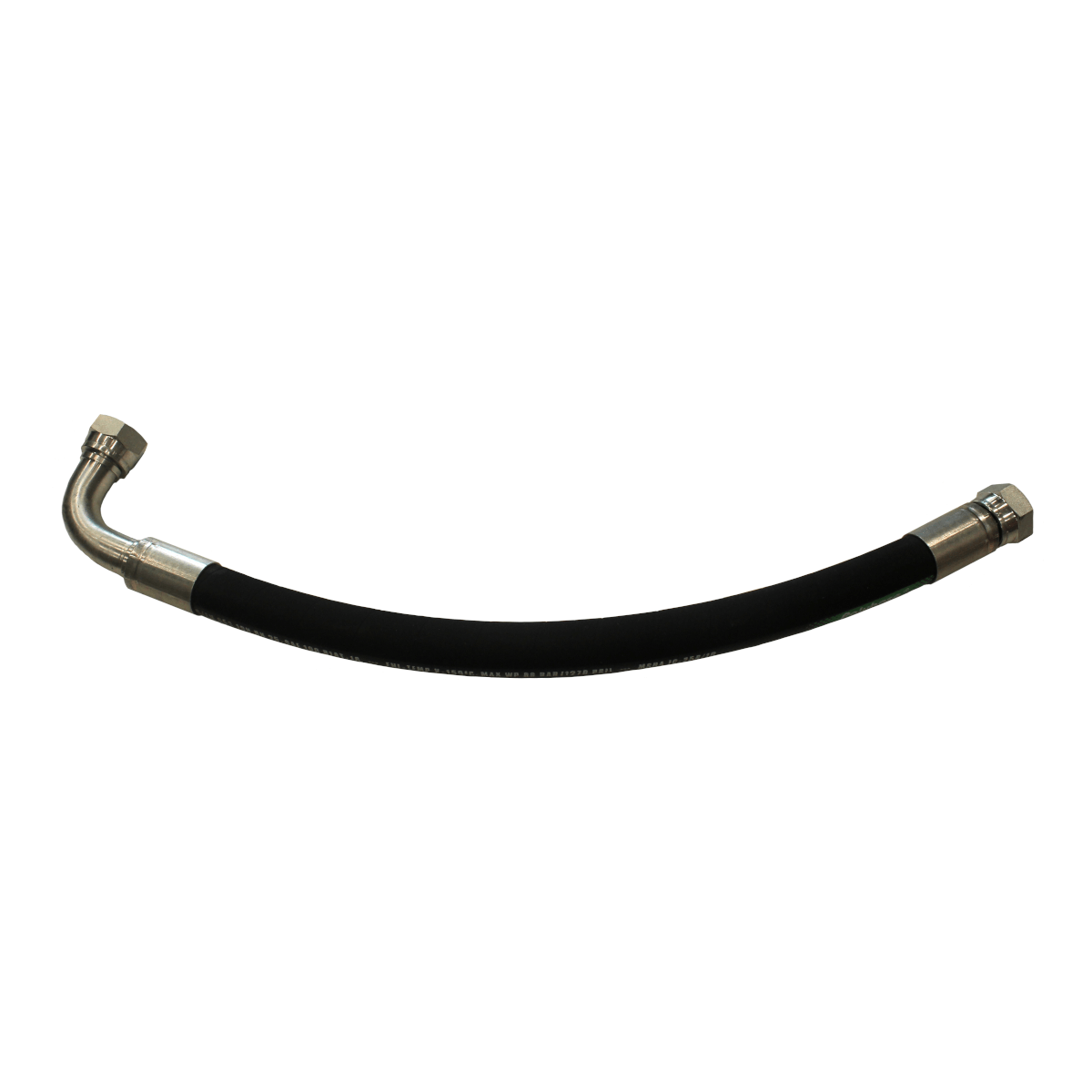

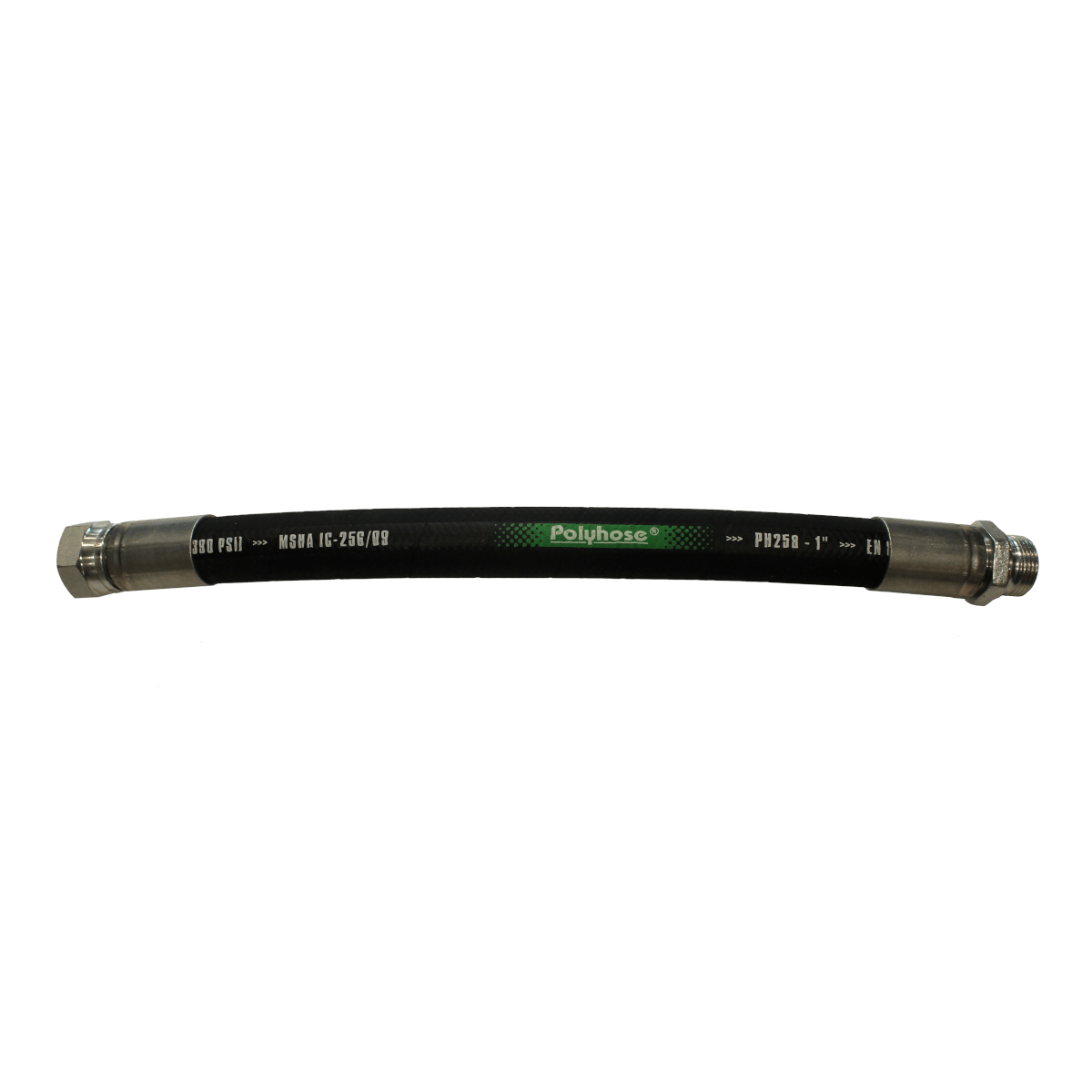

Our Hydraulic Hose Assemblies using SAE 100 R16 2SC Hose and BSP (British Standard Pipe) Fittings provide a reliable, high-pressure solution for hydraulic systems in demanding industrial, agricultural, and automotive applications. Built for durability and flexibility, these hose assemblies are designed to perform efficiently under high pressure, offering superior performance and long service life.
Key Features:
- High-Pressure Performance: Designed for use in hydraulic systems requiring high-pressure fluid transfer, these assemblies are suitable for intense applications.
- Durability: With its reinforced steel wire braiding and abrasion-resistant outer cover, the hose is built to withstand rough conditions, high pressure, and wear.
- Flexible Design: Despite its heavy-duty construction, the hose remains flexible, making it easy to route in complex systems or tight spaces.
- Corrosion-Resistant Fittings: BSP fittings made from high-grade materials ensure a secure, leak-free connection, while providing excellent resistance to rust and corrosion.
- Temperature Resistance: The hose is capable of handling a wide range of temperatures, making it ideal for both cold and hot environments.
Applications:
- Construction and Earthmoving Equipment: Used for hydraulic fluid transfer in heavy-duty machinery such as excavators, loaders, and bulldozers.
- Agricultural Machinery: Ideal for tractors, harvesters, and other farming equipment that rely on hydraulic power for various operations.
- Industrial Machinery: Widely used in hydraulic systems for industrial presses, pumps, and conveyor systems where high-pressure performance is essential.
- Automotive and Truck Hydraulics: Suitable for hydraulic systems in trucks, trailers, and other vehicles requiring fluid power for lifting, steering, or braking.
- Marine Applications: Used in hydraulic winches, steering systems, and deck equipment, where high-pressure hoses are required to withstand tough marine conditions.
- Oil and Gas Industry: Perfect for use in rigs and drilling machinery where the transfer of hydraulic fluid under high pressure is critical.

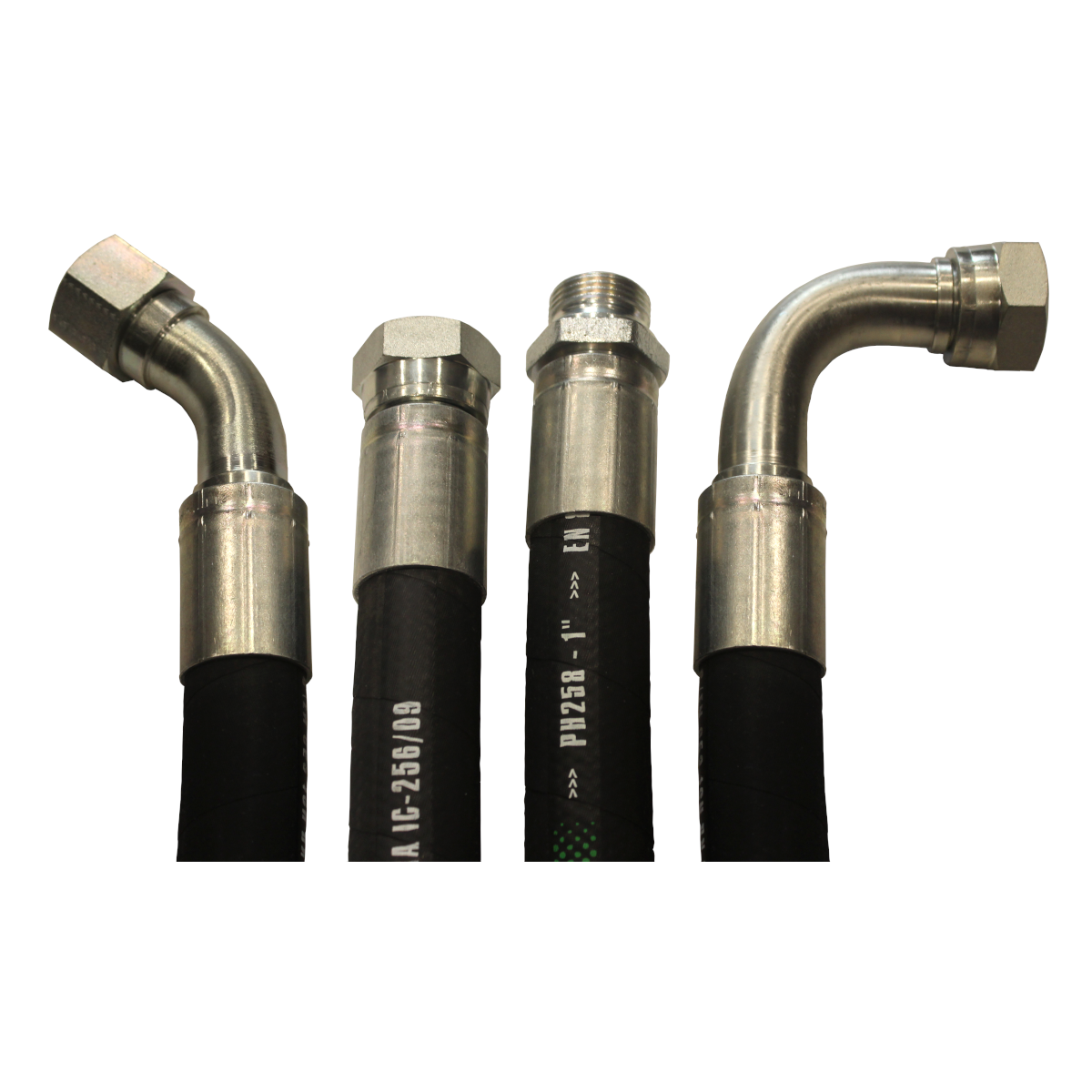

BSP Fitting options 1/4″ – 1″:
- Straight BSP Male
- BSP Female (straight, 45° elbow, 90° elbow)
*End fittings match the bore size of the hose* (e.g. 1/4″ bore hose will have 1/4″ BSP fittings)
Specification
Overview
Hose type :
SAE 100 R16 2SC
Size range :
1/4" - 1"
Construction :
Synthetic rubber with two high tensile steel braids
Operating temperature:
-40°c to + 100°c
Working Pressure :
165 bar - 400 bar
Burst pressure :
720 bar - 1850 bar
Minimum safety factor :
4:1
Bend radius :
45mm - 160mm
Measurements & Values
| ID | Working Pressure | Burst Pressure | Wall Thickness |
|---|
| 1/4" | 400 bar | 1600 bar | 3.6mm |
| 3/8" | 330 bar | 1320 bar | 4.05mm |
| 1/2" | 275 bar | 1100 bar | 4mm |
| 3/4" | 215 bar | 860 bar | 4.5mm |
| 1" | 165 bar | 660 bar | 5.1mm |
