Vulcan VG2 PAN Fibre & Graphite Packing
Vulcan VG2 PAN Fibre & Graphite Packing
Properties: VG2 is constructed using a composite yarn,
manufactured from high-quality PAN fibres combined with pure carbon fibres. The
in-built lubrication is further enhanced by thorough graphite impregnation.
Applications: VG2 is an exceptional performance and cost
effective, general purpose packing suitable for most plant applications.
Designed to replace and out-perform traditional graphited asbestos packings.
Suitable for use against oils, water, steam, solvents and general chemicals.
8 metre length standard
80 BAR pressure rating
-50°C to +250°C operational temperature
10 m/s rotary speed
4-12 pH range
| SIZE CODE (INCH) | CROSS SECTION (MM) |
| 1/8 | 3 |
| 3/16 | 5 |
| 1/4 | 6.5 |
| 5/16 | 8 |
| 3/8 | 9.5 |
| 7/16 | 11 |
| 1/2 | 12.5 |
| 9/16 | 14 |
| 5/8 | 16 |
| 3/4 | 19 |
| 7/8 | 22 |
| 1 | 25 |
Our stock changes on a constant basis, so if you have specific requirements please give us a call items that are not in stock can usually be sourced within a couple of working days.
Enquiry Form
Vulcan VR3 Graphite & Grafan
Graphite Packing, Pump, Gland, Valve Packing, Sealing, Jointing & GasketsProperties: VR3 is a braided packing, constructed from 100% grafan yarns, to form a truly exceptional capabilities and performance. Under compression in the gland VR3 packing die-forms into packing rings, offering the advantage of avoiding the need to wrap ribbon tape around the valve stems. Applications: Extreme condition, long life and zero leakage packing for all uses, up to high temperature, high pressure, high speed applications on pumps, valves, mixers, agitators, expansion joints, ball valve seats and other static seals. Against all acids, alkalis and solvents (except very strong oxidents), gasses, feed water and superheated or saturated steam. 8 metre length standard 200 BAR pressure rating -200°C to +600°C operational temperature 30 m/s rotary speed 0-14 pH range
Our stock changes on a constant basis, so if you have specific requirements please give us a call items that are not in stock can usually be sourced within a couple of working days. [sf_button colour="accent" type="standard" size="standard" link="/contact-us/" target="_self" icon="" dropshadow="no" rounded="no" extraclass=""]Enquiry Form[/sf_button]SIZE CODE (INCH) CROSS SECTION (MM) 1/8 3 3/16 5 1/4 6.5 5/16 8 3/8 9.5 7/16 11 1/2 12.5 9/16 14 5/8 16 3/4 19 7/8 22 1 25
EPDM Neoprene Plain Sponge Sheet
EPDM Neoprene Sponge, Gasket & Sealing Material, Sealing, Jointing & Gaskets, Sponge & FoamProperties: EPDM/Neoprene sponge has excellent resistance to fresh / sea water, oxidation, UV, ozone and weathering, It also has good resistance to acids. Conforms to: ASTM D 1056 98 B2 Applications: Gaskets, and sealing strips, around household windows and doors as a draft excluder, use around caravan and automotive windows, use as a weather seal saving energy, and money on heating costs.
Our stock changes on a constant basis, so if you have specific requirements please give us a call _ items that are not in stock can usually be sourced within a couple of working days. [sf_button colour="accent" type="standard" size="standard" link="/contact-us/" target="_self" icon="" dropshadow="no" rounded="no" extraclass=""]Enquiry Form[/sf_button]POLYMER TYPE COMPRESSION DEFLECTION @ 50% (KPA) DENSITY (KN/M_) TENSILE STRENGTH (KN/M_) ELONGATION AT BREAK (%) WATER ABSORPTION (%) TEMPERATURE (°C) EPDM/CR 112 122 >500 >180 0.8 -40 TO +100
Vulcan VT9L Pure PTFE Packing
PTFE Packing, Pump, Gland, Valve Packing, Sealing, Jointing & GasketsProperties: VT9L is braided from pure PTFE fibres, in the form of multi-filament yarns, vacuum impregnated with PTFE dispersion and saturated with chemically resistant lubricants. VT9L chemical pump packing exhibits high mechanical strength and high operational stability under demanding operation conditions, in addition to excellent nonfriction characteristics. Applications: The enhanced lubrication and multi-filament yarn treatment of VT9L allows greatly extended service capability in pumps up to 12m/s surface shaft speed. For use against solvents and virtually all chemicals with the exceptions of molten and alkali metals, and florine. 8 metre length standard 120 BAR pressure rating -200°C to +280°C operational temperature 12 m/s rotary speed 0-14 pH range
Our stock changes on a constant basis, so if you have specific requirements please give us a call items that are not in stock can usually be sourced within a couple of working days. [sf_button colour="accent" type="standard" size="standard" link="/contact-us/" target="_self" icon="" dropshadow="no" rounded="no" extraclass=""]Enquiry Form[/sf_button]SIZE CODE (INCH) CROSS SECTION (MM) 1/8 3 3/16 5 1/4 6.5 5/16 8 3/8 9.5 7/16 11 1/2 12.5 9/16 14 5/8 16 3/4 19 7/8 22 1 25
Phoenix PG-G CNAF
CNAF, Fibre Sheet, Gasket & Sealing Material, Sealing, Jointing & GasketsProperties: PG-G is a high quality grade of compressed fibre sheet material based on a combination of expanded graphite and synthetic fibres with a high quality Nitrile binding system. Applications: PG-G is a premium performance material with excellent mechanical properties and a high degree of flexibility. the material is designed for use in a wide range of applications including steam, hydrocarbons and general chemicals. Specification: BS7531 Grade X Availability: Thickness - 0.4mm to 3mm Sheet size - 1500mm x 1500mm
Our stock changes on a constant basis, so if you have specific requirements please give us a call items that are not in stock can usually be sourced within a couple of working days. [sf_button colour="accent" type="standard" size="standard" link="/contact-us/" target="_self" icon="" dropshadow="no" rounded="no" extraclass=""]Enquiry Form[/sf_button]TYPE COMPRESSION % DENSITY (g/cc) TENSILE STRENGTH (MPa) MAXIMUM PRESSURE (Bar) MAXIMUM TEMPERATURE (°C) PG-G 7 TO 15 1.80 13 60 225
Viton Rubber (Grade A)
Chemical Resistant Rubber, Fuel Resistant Rubber, Gasket & Sealing Material, Rubber, Sealing, Jointing & Gaskets, Temperature Resistant RubberViton rubber to cater for a number of high specification sealing and jointing in both commercial and domestic applications. This rubber is made from an Viton A Hexafluoropropylene rubber compound at 75° Shore hardness, to provide a robust, high temperature resistant material that can withstand Fuels, acids, oils, weathering and chemicals. Can be easily cut using press tools, blades, laser and water-jet CNC. Common applications include, but are by no means limited to; aviation, motor and marine gasket making to seal against petrol, diesel, biodiesel, aviation fuel, oils, acids and chemicals in excess of 200°C. If you require any further information or you have specific requirements please don't hesitate to get in contact with us. RUBBER: Viton A COLOUR: Black TEMPERATURE RATED: -30 to 250°C GRADE: Premium A grade HARDNESS: 70 shore A MAX ROLL LENGTH: 10 metre STANDARD WIDTH: 1.2 metre THICKNESS: 1mm to 6mm [sf_button colour="accent" type="standard" size="standard" link="/contact-us/" target="_self" icon="" dropshadow="no" rounded="no" extraclass=""]Enquiry Form[/sf_button]
Adhesive Backed Sponge
EPDM Neoprene Sponge, Gasket & Sealing Material, Sealing, Jointing & Gaskets, Sponge & FoamProperties: EPDM/Neoprene sponge has excellent resistance to fresh / sea water, oxidation, UV, ozone and weathering, It also has good resistance to acids. Conforms to: ASTM D 1056 98 B2 Applications: Gaskets, and sealing strips, around household windows and doors as a draft excluder, use around caravan and automotive windows, use as a weather seal saving energy, and money on heating costs.
Our stock changes on a constant basis, so if you have specific requirements please give us a call items that are not in stock can usually be sourced within a couple of working days. [sf_button colour="accent" type="standard" size="standard" link="/contact-us/" target="_self" icon="" dropshadow="no" rounded="no" extraclass=""]Enquiry Form[/sf_button]POLYMER TYPE COMPRESSION DEFLECTION @ 50% (KPA) DENSITY (KN/M_) TENSILE STRENGTH (KN/M_) ELONGATION AT BREAK (%) WATER ABSORPTION (%) TEMPERATURE (°C) EPDM/CR 112 122 >500 >180 0.8 -40 TO +100
Vulcan VP1 100% GORE PTFE Graphite
Graphite PTFE Packing, Pump, Gland, Valve Packing, Sealing, Jointing & GasketsProperties: Vulcan VP1 is 100% GORE fibre packing. This remarkable yarn is constructed from PTFE and graphite blended and then locked, and treated with a high temperature, break-in lubricant. VP1 is an outstanding packing for use in aggressive or arduous duties including the most difficult chemical environments. Applications: Extreme condition, long life packing for the chemical industry. We recommend this packing for possible applications. It will increase service life whilst minimising wear and gland adjustments, against nearly all media in static, rotary and reciprocating uses. 8 metre length standard 120 BAR pressure rating -200°C to +280°C operational temperature 25 m/s rotary speed 0-14 pH range
Our stock changes on a constant basis, so if you have specific requirements please give us a call items that are not in stock can usually be sourced within a couple of working days. [sf_button colour="accent" type="standard" size="standard" link="/contact-us/" target="_self" icon="" dropshadow="no" rounded="no" extraclass=""]Enquiry Form[/sf_button]SIZE CODE (INCH) CROSS SECTION (MM) 1/8 3 3/16 5 1/4 6.5 5/16 8 3/8 9.5 7/16 11 1/2 12.5 9/16 14 5/8 16 3/4 19 7/8 22 1 25

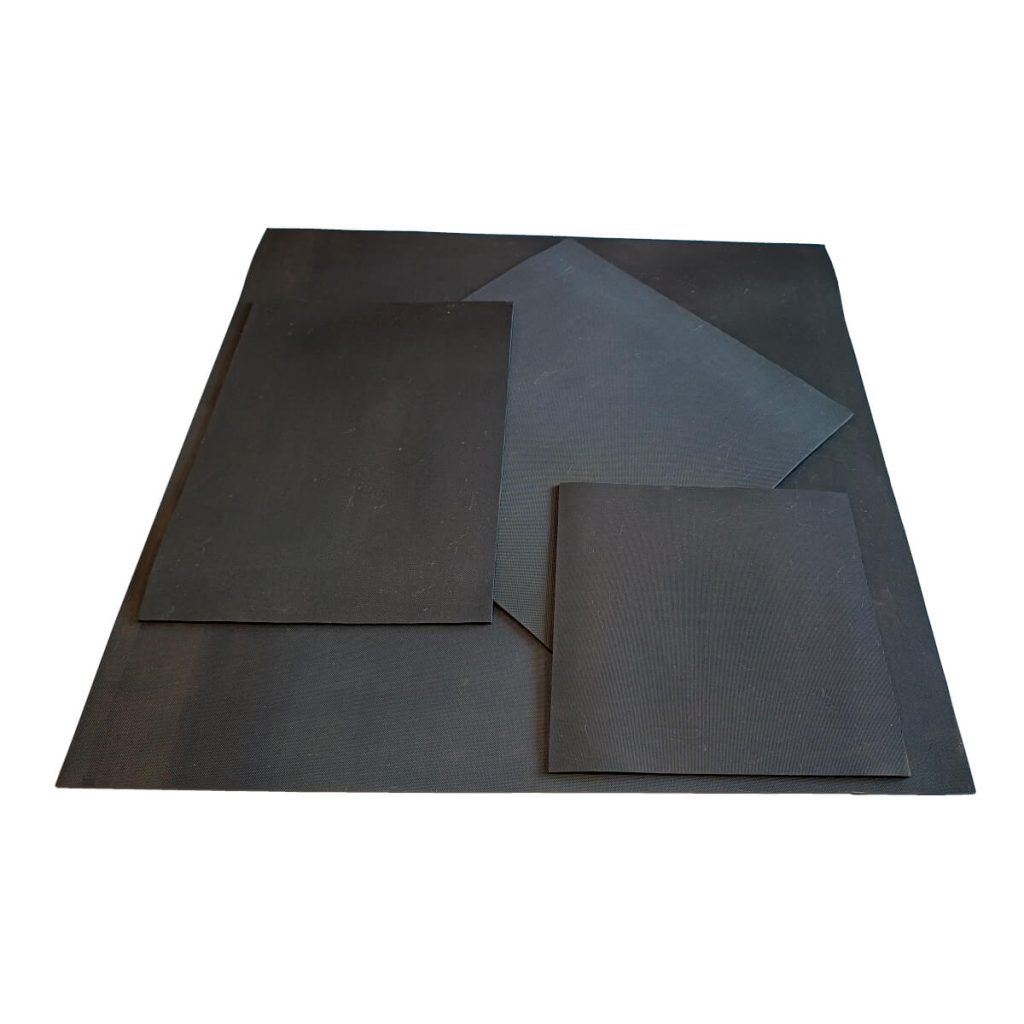

EPDM Rubber Sheet
